Model: KCGK948TBE

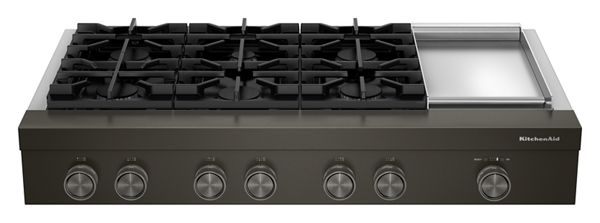

KitchenAid® 48-inch 6-Burner Gas Commercial-Style Rangetop with Griddle
Send Email
Print
Product Description

Experience performance and versatility with the 48-inch KitchenAid® Commercial-Style Rangetop with Chrome-Infused Electric Griddle. With The Most Versatile Burner Spectrum Available Among Rangetops*, you can successfully sear, simmer, stir-fry and sauté simultaneously. The Chrome-Infused Electric Griddle doesn’t need to be seasoned, preheats faster than cast iron and easily wipes clean with a non-porous finish.

*Based on reported BTU output of highest and lowest BTU burner

Color: Black Ore

Model: KCGK948TBE
KitchenAid® 48-inch 6-Burner Gas Commercial-Style Rangetop with Griddle
Color: Black Ore

Product Description

Experience performance and versatility with the 48-inch KitchenAid® Commercial-Style Rangetop with Chrome-Infused Electric Griddle. With The Most Versatile Burner Spectrum Available Among Rangetops*, you can successfully sear, simmer, stir-fry and sauté simultaneously. The Chrome-Infused Electric Griddle doesn’t need to be seasoned, preheats faster than cast iron and easily wipes clean with a non-porous finish.

*Based on reported BTU output of highest and lowest BTU burner

Features
The Most Versatile Burner Spectrum Available Among Rangetops* *Based on reported BTU output of highest and lowest BTU burner
Features dedicated burners that let you cook at powerful high temperatures and gentle low temperatures at the same time. Sear your ribeye at 20,000 BTU while delicately simmering garlic butter at 5,000 BTU to finish multi-course meals with perfect timing.

*Based on reported BTU output of highest and lowest BTU burner

more
Scratch-Resistant Porcelain Coated Cooking Surface
helps protect your rangetop surface from daily use with a durable, long-lasting coating. Featuring a premium enamel finish that is 10x more scratch-resistant than stainless steel, it offers a smooth, pristine look.more
Chrome-Infused Electric Griddle
is designed to outperform standard cast iron. The smooth surface requires no seasoning and preheats faster than traditional cast iron surfaces. The non-porous finish stays pristine and easily wipes clean, allowing you to go from smoky proteins to delicate pancakes.more
Three-Level Convertible Grates
match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.more
Designed to be Personalized
with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching knobs. Personalize your knob accessory kits in Brass, Bronze, Black Ore and Stainless Steel.more
20,000 BTU Dual-Flame Burner
give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.more
5,000 BTU Simmer & Melt Burner
gives you the 'low-and-slow' precision needed for ingredients that demand a gentle touch. Sized perfectly for small cookware, it allows you to melt delicate chocolate or simmer clarified butter directly on the grate, no double-boiler required.more
Three 15,000 BTU Burners
deliver the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.more
Auto Reignition
relights burners with an electric spark. If something happens to snuff out the flame, such as a gust of air or boilover, the Auto Reignition feature will relight the burner without manual intervention.
more
Sealed Burners
Designed with a cap and edging to prevent crumbs, spills and boilovers from falling into the rangetop interior, making cleanup easy.more
LP Conversion Kit
allows you to convert the cooktop so it can be used with liquid propanemore
-
-more
Specifications
Certifications
CEC Listed No
CUL Yes
UL Yes
Prop 65 CA
Energy Star® Qualified No
Bill 29 6
CEC Listed
No
CUL
Yes
UL
Yes
Prop 65
CA
Energy Star® Qualified
No
Bill 29
6
Element/Burner Details
Center Front Element-Burner Power 15000 BTU
Center Front Element-Burner Type Sealed Burner
Center Rear Element-Burner Type Simmer
Center Rear Element-Burner Power 5000 BTU
Cooktop Element Style Sealed Burner
Cooktop Type Rangetop
Left Front Element-Burner Power 20000 BTU
Left Front Element-Burner Type Ultra Power™ Dual-Flame Burner
Left Rear Element-Burner Power 5000 BTU
Left Rear Element-Burner Type Simmer
Number of Cooking Element-Burners 6
Power Boost No
Right Front Element-Burner Power 20000 BTU
Right Front Element-Burner Type Ultra Power™ Dual-Flame Burner
Right Rear Element-Burner Power 15000 BTU
Right Rear Element-Burner Type Sealed Burner
Automatic Pan Detection No
Automatic Pan Size Adjustment No
Number of Grates 6
Center Front Element-Burner Power
15000 BTU
Center Front Element-Burner Type
Sealed Burner
Center Rear Element-Burner Type
Simmer
Center Rear Element-Burner Power
5000 BTU
Cooktop Element Style
Sealed Burner
Cooktop Type
Rangetop
Left Front Element-Burner Power
20000 BTU
Left Front Element-Burner Type
Ultra Power™ Dual-Flame Burner
Left Rear Element-Burner Power
5000 BTU
Left Rear Element-Burner Type
Simmer
Number of Cooking Element-Burners
6
Power Boost
No
Right Front Element-Burner Power
20000 BTU
Right Front Element-Burner Type
Ultra Power™ Dual-Flame Burner
Right Rear Element-Burner Power
15000 BTU
Right Rear Element-Burner Type
Sealed Burner
Automatic Pan Detection
No
Automatic Pan Size Adjustment
No
Number of Grates
6
Details
Cooktop Configuration Burners with Integrated Griddle
Fuel Type Gas
LP Convertible Yes - Kit Included
Natural Gas Convertible Yes-Optional Kit Available
Power Outage Compatible Yes
Digital Display No
Personalized Hardware Yes
Gas Regulator Inlet Thread Size .50
Cooktop Configuration
Burners with Integrated Griddle
Fuel Type
Gas
LP Convertible
Yes - Kit Included
Natural Gas Convertible
Yes-Optional Kit Available
Power Outage Compatible
Yes
Digital Display
No
Personalized Hardware
Yes
Gas Regulator Inlet Thread Size
.50
Exterior Details
Knob Color Color Coordinated
Knob Type Metal
Knob Color
Color Coordinated
Knob Type
Metal
Grate Details
Grate Details Dishwasher Safe , Matte Finish
Grate Details
Dishwasher Safe , Matte Finish
Smart Compatibility
Connectivity No
Works With No
Connectivity
No
Works With
No
Ventilation Details
Auto Function No
Downdraft Vent No
Auto Function
No
Downdraft Vent
No
Dimensions
Cutout Depth 56.52 cm, 22.25 in
Cutout Depth Max 56.52 cm, 22.25 in
Cutout Height 18.42 cm, 7.25 in
Cutout Depth Min 56.52 cm, 22.25 in
Cutout Width 120.02 cm, 47.25 in
Cutout Width Max 121.28 cm, 47.75 in
Depth 70.80 cm, 27.875 in
Cutout Width Min 120.02 cm, 47.25 in
Gross Weight 108.86 kg, 240 lbs
Height 22.86 cm, 9 in
Net Weight 94.80 kg, 209 lbs
Width 121.28 cm, 47.75 in
Common Size 121.92 cm, 48 in
Maximum Height 22.86 cm, 9 in
Minimum Height 22.86 cm, 9 in
Cutout Depth
56.52 cm, 22.25 in
Cutout Depth Max
56.52 cm, 22.25 in
Cutout Height
18.42 cm, 7.25 in
Cutout Depth Min
56.52 cm, 22.25 in
Cutout Width
120.02 cm, 47.25 in
Cutout Width Max
121.28 cm, 47.75 in
Depth
70.80 cm, 27.875 in
Cutout Width Min
120.02 cm, 47.25 in
Gross Weight
108.86 kg, 240 lbs
Height
22.86 cm, 9 in
Net Weight
94.80 kg, 209 lbs
Width
121.28 cm, 47.75 in
Common Size
121.92 cm, 48 in
Maximum Height
22.86 cm, 9 in
Minimum Height
22.86 cm, 9 in
Controls
Control Location Front
Control Type Knobs
Control Location
Front
Control Type
Knobs
Features
Cooktop Features 20K BTU Dual-Ring Burner , High BTU Burner
Cooktop Features
20K BTU Dual-Ring Burner , High BTU Burner
Cooktop Details
Auto Re-ignition Yes
Cooktop Surface Color Black
Cooktop Surface Material Porcelain Coated Steel
Griddle Included Yes, Integrated
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Ignition Type Flame-Sensing™ Re-ignition
Installs Over Built-In Oven No
Auto Re-ignition
Yes
Cooktop Surface Color
Black
Cooktop Surface Material
Porcelain Coated Steel
Griddle Included
Yes, Integrated
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Flame-Sensing™ Re-ignition
Installs Over Built-In Oven
No
Electrical Requirements
208V Compatible No
Power Cord Included Yes
Amps 15
Hz 60
Volts 120
208V Compatible
No
Power Cord Included
Yes
Amps
15
Hz
60
Volts
120
Documents
UPC Listing
Model "KCGK948TBE" UPC: 883049955575
Model "KCGK948TJP" UPC: 883049955568
Model "KCGK948TSS" UPC: 883049955551
Model "KCGK948TBE"
UPC: 883049955575
Model "KCGK948TJP"
UPC: 883049955568
Model "KCGK948TSS"
UPC: 883049955551
