Model: KRFC236SJP

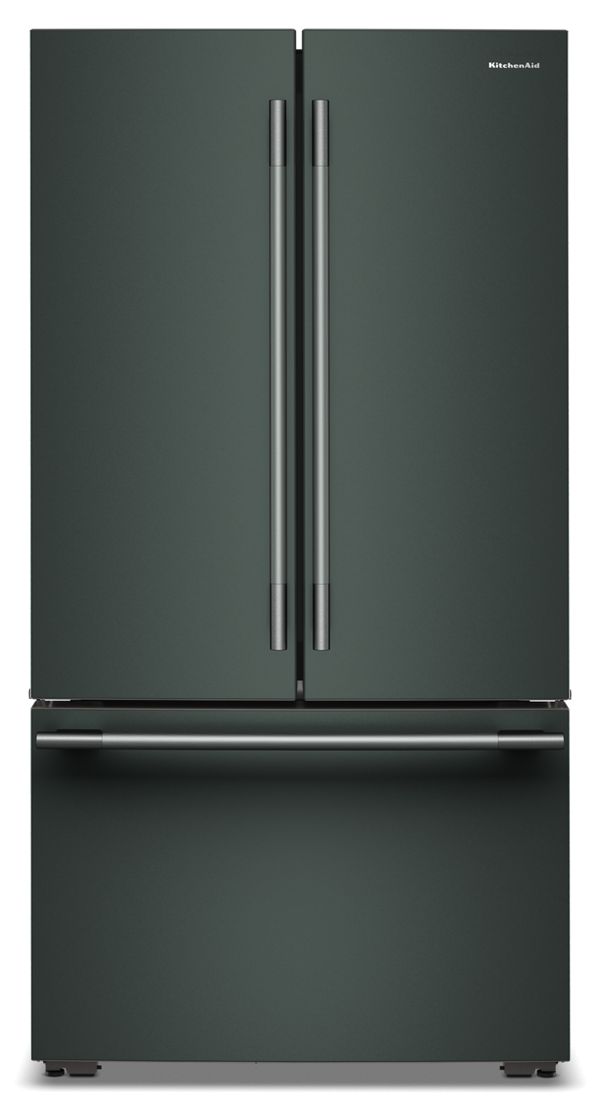

Counter-Depth French Door Refrigerator with Internal Water Dispenser
Send Email
Print
Product Description

Feed your creativity with the KitchenAid French Door Bottom Mount Refrigerator with Internal Water Dispenser. Keep your food fresh and flavorful with the Preserva® Food Care System, FreshChill™ Temperature-Controlled Full-Width Pantry Drawer featuring temperature presets and FreshSeal™ Humidity-Controlled Crisper Bins. Plus, with True Counter Depth, and a number of finishes and hardware that are designed to be personalized, your refrigerator seamlessly fits into your kitchen with a seamless, built-in look.*

*Not including doors when installed in standard 25 1/2" cabinet and countertop

Color: Juniper

Model: KRFC236SJP
Counter-Depth French Door Refrigerator with Internal Water Dispenser
Color: Juniper

Product Description

Feed your creativity with the KitchenAid French Door Bottom Mount Refrigerator with Internal Water Dispenser. Keep your food fresh and flavorful with the Preserva® Food Care System, FreshChill™ Temperature-Controlled Full-Width Pantry Drawer featuring temperature presets and FreshSeal™ Humidity-Controlled Crisper Bins. Plus, with True Counter Depth, and a number of finishes and hardware that are designed to be personalized, your refrigerator seamlessly fits into your kitchen with a seamless, built-in look.*

*Not including doors when installed in standard 25 1/2" cabinet and countertop

Additional Hardware Kit
Features
Preserva® Cooling System
helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.more
FreshChill™ Temperature-Controlled Full-Width Pantry Drawer
makes it easy to customize storage temperatures for different types of ingredients, helping to maintain freshness. Simply touch and select temperature presets for wine, deli, drinks and meat.more
FreshSeal™ Humidity-Controlled Crisper Bins
keep ingredients fresh, thanks to FreshSeal™ gaskets that keep humidity locked in.more
True Counter Depth
refrigerator seamlessly fits* into your kitchen with a built-in look that doesn't stick out from your cabinets and counters. Experience a refrigerator that won't disrupt the flow of your kitchen's design with specially designed hinges that allow the door to open up to 135° degrees.

*Not including doors when installed in standard 25 1/2" cabinet and countertop.more
Designed to be Personalized
with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching handles. Personalize your hardware with optional handle kits in Brass, Bronze, Black Ore and Stainless Steel.more
Internal Water Dispenser
provides convenient access to filtered water while maintaining the refrigerator's clean lines and sleek exterior design.more
True Clearance Hinges
let you open the refrigerator doors up to 135° making it easy to unload groceries and remove refrigerator shelves while maintaining a True Counter Depth* aesthetic.


*Not including doors when installed in standard 25 1/2" cabinet and countertopmore
Signature Platinum Interior
wows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.more
Ultra-Bright LED Lighting
turns on when the refrigerator doors or drawers are open, making it easy to find items inside.more
Freezer Ice Maker
can store up to 7 lbs of ice and make up to 3+ lbs of new ice per day, so you can have ice on hand whenever you need it.more
Max Cool
helps quickly chill recently loaded groceries to help keep them fresh by setting the refrigerator compartment to the lowest temperature level for up to 24 hours.more
Max Freeze
lets you drop freezer temperature to coldest level at the touch of a button (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.more
Adjustable Glass Shelving
lets you accommodate your trickiest jars, glasses or containers. Shelves are fully removable for easy cleaning and customization.more
Wood-Look Sliding Storage Tray
keeps serving platters and ingredients easily accessible. The tray removes fully for easy cleaning.more
Two-Tier Freezer Drawer
conveniently organizes frozen foods so they're easy to find. An adjustable storage divider in the lower drawer, pizza pocket and flat-item shelf help keep smaller items from getting lost under larger ones.more
everydrop® Water Filter
is easy to install, replace, and use. This filter reduces 75 potentially harmful contaminants like microplastics and lead while giving you clean, fresh-tasting water for recipes and drinksmore
Specifications
Filter Details
Air Filter Indicator/Reset No
Fresh Flow Air Filter Included No
Produce Preserver No
Water Filter Location Interior
Water Filter Indicator/Reset Yes
Water Filter Part Number EDRARXD1
Air Filter Indicator/Reset
No
Fresh Flow Air Filter Included
No
Produce Preserver
No
Water Filter Location
Interior
Water Filter Indicator/Reset
Yes
Water Filter Part Number
EDRARXD1
Dimensions
Cabinet Width 90.49 cm, 35.625 in
Cutout Width 91.44 cm, 36 in
Cutout Height 178.12 cm, 70.125 in
Depth 81.60 cm, 32.125 in
Depth Closed Excluding Handles 74.77 cm, 29.438 in
Depth Closed Including Handles 81.60 cm, 32.125 in
Depth Excluding Doors 63.50 cm, 25 in
Depth With Door Open 90 Degree 112.40 cm, 44.25 in
Freezer Capacity Volume 185.93 l, 6.57 cu. ft.
Gross Weight 161.03 kg, 355 lbs
Height 177.64 cm, 69.9375 in
Height To Top Of Cabinet 174.94 cm, 68.875 in
Height To Top Of Door Hinge 177.64 cm, 69.938 in
Net Weight 154.22 kg, 340 lbs
Refrigerator Capacity Volume 500.34 l, 17.68 cu. ft.
Total Refrigerator Capacity Volume 687.69 l, 24.3 cu. ft.
Width 90.49 cm, 35.625 in
Width Doors Open 90 Degrees 112.40 cm, 44.25 in
Width with Doors Closed 90.49 cm, 35.625 in
Common Size 91.44 cm, 36 in
Maximum Height 177.48 cm, 69.875 in
Minimum Height 177.64 cm, 69.9375 in
Capacity 687.69 l, 24.3 cu. ft.
Cabinet Width
90.49 cm, 35.625 in
Cutout Width
91.44 cm, 36 in
Cutout Height
178.12 cm, 70.125 in
Depth
81.60 cm, 32.125 in
Depth Closed Excluding Handles
74.77 cm, 29.438 in
Depth Closed Including Handles
81.60 cm, 32.125 in
Depth Excluding Doors
63.50 cm, 25 in
Depth With Door Open 90 Degree
112.40 cm, 44.25 in
Freezer Capacity Volume
185.93 l, 6.57 cu. ft.
Gross Weight
161.03 kg, 355 lbs
Height
177.64 cm, 69.9375 in
Height To Top Of Cabinet
174.94 cm, 68.875 in
Height To Top Of Door Hinge
177.64 cm, 69.938 in
Net Weight
154.22 kg, 340 lbs
Refrigerator Capacity Volume
500.34 l, 17.68 cu. ft.
Total Refrigerator Capacity Volume
687.69 l, 24.3 cu. ft.
Width
90.49 cm, 35.625 in
Width Doors Open 90 Degrees
112.40 cm, 44.25 in
Width with Doors Closed
90.49 cm, 35.625 in
Common Size
91.44 cm, 36 in
Maximum Height
177.48 cm, 69.875 in
Minimum Height
177.64 cm, 69.9375 in
Capacity
687.69 l, 24.3 cu. ft.
Certifications
ADA Compliant Yes
CEE Tier Rating Tier I
Star K Certified Star K Certified
UL Yes
Prop 65 Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
UL File Number 24MBM6C
ADA Compliant
Yes
CEE Tier Rating
Tier I
Star K Certified
Star K Certified
UL
Yes
Prop 65
Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
UL File Number
24MBM6C
Smart Compatibility
Connectivity No
Smart Appliance No
Connectivity
No
Smart Appliance
No
Exterior Details
Cabinet Color Juniper Green
Cabinet Finish Textured
Counter Depth Yes
Door Color Juniper Green
Door Opening Direction N/A
Door Finish Smooth
Door Style Contour
Handle Material Metal
Hidden Hinge Yes
Handle Type Reach-Through Handle
Reversible Door No
Cabinet Color
Juniper Green
Cabinet Finish
Textured
Counter Depth
Yes
Door Color
Juniper Green
Door Opening Direction
N/A
Door Finish
Smooth
Door Style
Contour
Handle Material
Metal
Hidden Hinge
Yes
Handle Type
Reach-Through Handle
Reversible Door
No
Controls
Automatic Defrost Yes
Control Location Side Door
Control Lockout Yes
Control Options Child Lock , Demo Mode , Vacation Mode , Vacation Mode
Cooling Type Single Evaporator
Door Ajar/Open Alarm Yes
LCD Touch Screen No
Max Cool/Fast Cool Yes
Max Ice No
Sabbath Mode Yes
Temperature Range -5F/+5F FC 30F/45F RC
Refrigerator Max Cool Yes
Automatic Defrost
Yes
Control Location
Side Door
Control Lockout
Yes
Control Options
Child Lock , Demo Mode , Vacation Mode , Vacation Mode
Cooling Type
Single Evaporator
Door Ajar/Open Alarm
Yes
LCD Touch Screen
No
Max Cool/Fast Cool
Yes
Max Ice
No
Sabbath Mode
Yes
Temperature Range
-5F/+5F FC 30F/45F RC
Refrigerator Max Cool
Yes
Details
Garage Ready No
Ice Capacity Storage 3.18 kg, 7 lbs
Installation Configuration Freestanding
Installation Option Freestanding
Levelers 2
Refrigeration Configuration Refrigerator
Refrigerator Type French Door
Wheels 2 Fixed Feet + 2 Wheels
Door Style Configuration French Door
Garage Ready
No
Ice Capacity Storage
3.18 kg, 7 lbs
Installation Configuration
Freestanding
Installation Option
Freestanding
Levelers
2
Refrigeration Configuration
Refrigerator
Refrigerator Type
French Door
Wheels
2 Fixed Feet + 2 Wheels
Door Style Configuration
French Door
Refrigerator Details
Conventional Shelves 1 Fixed Full-Width Glass , 1 Slide-Out - Wood Finish , 4 Adjustable Half-Width Glass
Humidity-Controlled Crispers 2 Fresh Seal Crispers , 60/40 Split Width
Liner Finish Platinum
Number of Doors 3
Number of Interior Shelves 6
Pantry Drawer Yes
Refrigerator Lighting LED
Refrigerator Door Bins 2 Adjustable Gallon , 2 Fixed Full-Width , 4 Adjustable Gallon
Spill-Proof Glass Shelves No
Supplementary Containers N/A
Temperature-Controlled Drawers 1 Full-Width Pantry
Pantry Drawer Setting Meat: 30F (-1.1C) Drink: 34F (1.1C) Deli: 37F (2.8C) Wine: 41F(5C)
Conventional Shelves
1 Fixed Full-Width Glass , 1 Slide-Out - Wood Finish , 4 Adjustable Half-Width Glass
Humidity-Controlled Crispers
2 Fresh Seal Crispers , 60/40 Split Width
Liner Finish
Platinum
Number of Doors
3
Number of Interior Shelves
6
Pantry Drawer
Yes
Refrigerator Lighting
LED
Refrigerator Door Bins
2 Adjustable Gallon , 2 Fixed Full-Width , 4 Adjustable Gallon
Spill-Proof Glass Shelves
No
Supplementary Containers
N/A
Temperature-Controlled Drawers
1 Full-Width Pantry
Pantry Drawer Setting
Meat: 30F (-1.1C) Drink: 34F (1.1C) Deli: 37F (2.8C) Wine: 41F(5C)
Icemaker Details
Icemaker Factory Installed
Icemaker Location Freezer
Types of Ice Cubed
Icemaker
Factory Installed
Icemaker Location
Freezer
Types of Ice
Cubed
Dispenser Details
Dispenser Type Interior Water Only
Dispenser Options Paddle
Dispenser Pad Color Grey
Dispenser Type
Interior Water Only
Dispenser Options
Paddle
Dispenser Pad Color
Grey
Freezer Details
Defrost Type Automatic Defrost
Freezer Door Bins Pizza Pocket
Freezer Door Type Pull-Out
Freezer Drawer/Basket 1 Full Width Lower Plastic with Adjustable Divider , 1 Full Width Upper Plastic
Freezer Lighting LED
Freezer Fast Cool Yes
Defrost Type
Automatic Defrost
Freezer Door Bins
Pizza Pocket
Freezer Door Type
Pull-Out
Freezer Drawer/Basket
1 Full Width Lower Plastic with Adjustable Divider , 1 Full Width Upper Plastic
Freezer Lighting
LED
Freezer Fast Cool
Yes
Electrical Requirements
Amps 4
Hz 60
Volts 115
Amps
4
Hz
60
Volts
115
Documents
UPC Listing
Model "KRFC236SBE" UPC: 883049701479
Model "KRFC236SJP" UPC: 883049923673
Model "KRFC236SPS" UPC: 883049701417
Model "KRFC236SBE"
UPC: 883049701479
Model "KRFC236SJP"
UPC: 883049923673
Model "KRFC236SPS"
UPC: 883049701417
