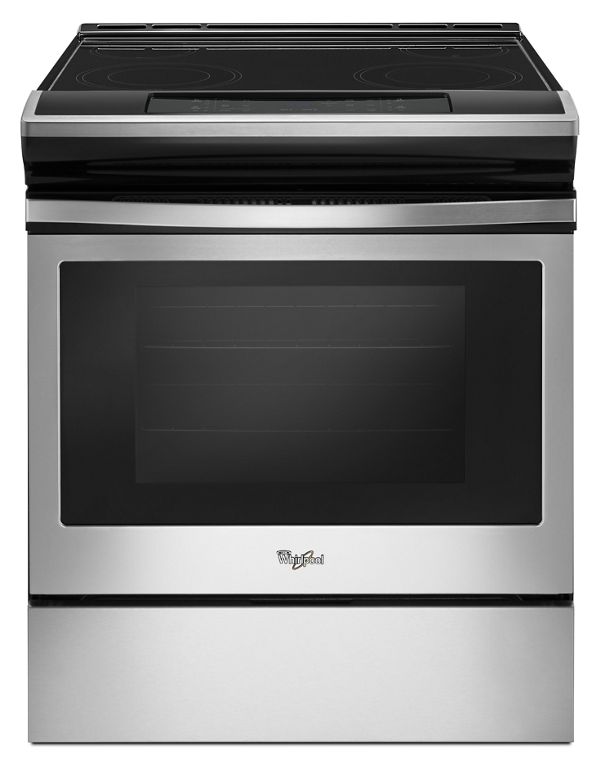

Model: YWEE510S0FS
4.8 cu. ft. guided Electric Front Control Range with the easy-wipe ceramic glass cooktop
Send Email
Print

Product Description

Cook for the family, even on a hectic schedule with our 4.8 cu. ft. knobless electric front control range with the easy-wipe ceramic glass cooktop. This cooking range is designed with features that help you get dinner to the table quickly. Skip preheating for favorites like pizza and lasagna with Frozen Bake™ technology. Our electric range features guided cooktop controls that help you control the heat without the guesswork when selecting the temperature you need. Cleaning your kitchen range is simple with adjustable self-cleaning settings that take on all kinds of messes.

White Black Stainless Stainless Steel Black
Color: Stainless Steel

Model: YWEE510S0FS
4.8 cu. ft. guided Electric Front Control Range with the easy-wipe ceramic glass cooktop
Color: Stainless Steel

Product Description

Cook for the family, even on a hectic schedule with our 4.8 cu. ft. knobless electric front control range with the easy-wipe ceramic glass cooktop. This cooking range is designed with features that help you get dinner to the table quickly. Skip preheating for favorites like pizza and lasagna with Frozen Bake™ technology. Our electric range features guided cooktop controls that help you control the heat without the guesswork when selecting the temperature you need. Cleaning your kitchen range is simple with adjustable self-cleaning settings that take on all kinds of messes.

Features
Frozen Bake™ Technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.more

Frozen Bake™ Technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

x
Guided Cooktop Controls
Control the heat without the guesswork. The knobless design uses up/down arrows to select the temperature you need, while heat level indicators show when you are simmering and melting.more

Guided Cooktop Controls

Control the heat without the guesswork. The knobless design uses up/down arrows to select the temperature you need, while heat level indicators show when you are simmering and melting.

x
FlexHeat™ Dual Radiant Elements
Get two elements in one with a 6" inner ring that’s great for smaller pots and pans and a 9" outer ring that makes room for larger cookware.more

FlexHeat™ Dual Radiant Elements

Get two elements in one with a 6" inner ring that’s great for smaller pots and pans and a 9" outer ring that makes room for larger cookware.

x
Adjustable Self-Cleaning
Take on all kinds of messes in the oven with cleaning settings for light, moderate or heavy soils.more

Adjustable Self-Cleaning

Take on all kinds of messes in the oven with cleaning settings for light, moderate or heavy soils.

x
Easy-Wipe Ceramic Glass Cooktop
Temperature Sensor
A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.more

Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

x
4.8 cu. ft. Capacity
Specifications
Certifications
ADA Compliant ADA Height and Operation Compliant
CUL Yes
UL Yes
Prop 65 CA
ADA Compliant
ADA Height and Operation Compliant
CUL
Yes
UL
Yes
Prop 65
CA
Oven Cavity Details
Number of Oven Racks 2
Convection Functions No
Oven Rack Type Standard (Both)
Oven Cleaning Type Adjustable Self Cleaning
Door Removable Yes
Number of Oven Lights 1
Convection Element Type None
Oven Light Type Incandescent
Interior Color Grey
Number of Rack Guides 5
Hidden Bake Element No
Oven Cooking System Thermal
Broiler Element Power 3400W
Bake Element Power 2400W
Oven Light Switch Location Oven Control
Number of Oven Racks
2
Convection Functions
No
Oven Rack Type
Standard (Both)
Oven Cleaning Type
Adjustable Self Cleaning
Door Removable
Yes
Number of Oven Lights
1
Convection Element Type
None
Oven Light Type
Incandescent
Interior Color
Grey
Number of Rack Guides
5
Hidden Bake Element
No
Oven Cooking System
Thermal
Broiler Element Power
3400W
Bake Element Power
2400W
Oven Light Switch Location
Oven Control
Details
Fuel Type Electric
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible No
Range Configuration Slide-In
Range Type Slide-in
Oven Cleaning Type Adjustable Self Cleaning
Cooktop Surface Color Color Coordinated Black on Stainless
Cooktop Surface Material Glass
Oven Selections Audible Signal , Clock , Control Lock , Cook Time Indicator , Delay Start , Frozen Bake , Sabbath Mode , Timer , Warm Hold
Fuel Type
Electric
Oven Configuration
Single Oven
Power On Indicator Light
Yes
Power Outage Compatible
No
Range Configuration
Slide-In
Range Type
Slide-in
Oven Cleaning Type
Adjustable Self Cleaning
Cooktop Surface Color
Color Coordinated Black on Stainless
Cooktop Surface Material
Glass
Oven Selections
Audible Signal , Clock , Control Lock , Cook Time Indicator , Delay Start , Frozen Bake , Sabbath Mode , Timer , Warm Hold
Element/Burner Details
Cooktop Element Style Smoothtop
Left Front Element-Burner Power 3000W
Left Front Element-Burner Size 9in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Power 1200W
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Radiant
Number of Cooking Element-Burners 4
Right Front Element-Burner Power 3000W
Right Front Element-Burner Size 9in./6in.
Right Rear Element-Burner Size 6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Type Radiant
Cooktop Element Style
Smoothtop
Left Front Element-Burner Power
3000W
Left Front Element-Burner Size
9in./6in.
Left Front Element-Burner Type
Dual
Left Rear Element-Burner Power
1200W
Left Rear Element-Burner Size
6in.
Left Rear Element-Burner Type
Radiant
Number of Cooking Element-Burners
4
Right Front Element-Burner Power
3000W
Right Front Element-Burner Size
9in./6in.
Right Rear Element-Burner Size
6in.
Right Front Element-Burner Type
Dual
Right Rear Element-Burner Power
1200W
Right Rear Element-Burner Type
Radiant
Exterior Details
Door Type Metal & Glass
Oven Control Location Front
Oven Control Type Electronic Touch
Oven Window Size Extra Large
Display Color Blue
Door Type
Metal & Glass
Oven Control Location
Front
Oven Control Type
Electronic Touch
Oven Window Size
Extra Large
Display Color
Blue
Dimensions
Cutout Depth 60.96 cm, 24 in
Cutout Height 91.44 cm, 36 in
Cutout Width 76.52 cm, 30.125 in
Depth 73.50 cm, 28.9375 in
Depth Closed Excluding Handles 71.44 cm, 28.125 in
Depth With Door Open 90 Degree 120.33 cm, 47.375 in
Gross Weight 76.66 kg, 35.38 kg, 169 lbs, 78 lbs
Net Weight 67.59 kg, 31.27 kg, 149 lbs, 68.9342 lbs
Oven Interior Height 46.04 cm, 18.125 in
Oven Interior Depth 46.99 cm, 18.5 in
Oven Interior Width 62.23 cm, 24.5 in
Width 75.88 cm, 29.875 in
Capacity 135.84 l, 4.8 cu. ft.
Common Size 76.20 cm, 30 in
Maximum Height 93.98 cm, 37 in
Minimum Height 91.44 cm, 36 in
Cutout Depth
60.96 cm, 24 in
Cutout Height
91.44 cm, 36 in
Cutout Width
76.52 cm, 30.125 in
Depth
73.50 cm, 28.9375 in
Depth Closed Excluding Handles
71.44 cm, 28.125 in
Depth With Door Open 90 Degree
120.33 cm, 47.375 in
Gross Weight
76.66 kg, 35.38 kg, 169 lbs, 78 lbs
Net Weight
67.59 kg, 31.27 kg, 149 lbs, 68.9342 lbs
Oven Interior Height
46.04 cm, 18.125 in
Oven Interior Depth
46.99 cm, 18.5 in
Oven Interior Width
62.23 cm, 24.5 in
Width
75.88 cm, 29.875 in
Capacity
135.84 l, 4.8 cu. ft.
Common Size
76.20 cm, 30 in
Maximum Height
93.98 cm, 37 in
Minimum Height
91.44 cm, 36 in
Controls
Display Color Blue
Electronic Display Type LED
Display Color
Blue
Electronic Display Type
LED
Dimensions
Gross Weight 78.02 kg, 172.000 lbs
Gross Weight
78.02 kg, 172.000 lbs
Cooktop Details
Cooktop Control Location Front
Cooktop Surface Color Black on Stainless
Cooktop Surface Material Glass
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Cooktop Control Location
Front
Cooktop Surface Color
Black on Stainless
Cooktop Surface Material
Glass
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Electrical Requirements
Power Cord Included No
Amps 40
Hz 60
Volts 120
Power Cord Included
No
Amps
40
Hz
60
Volts
120
Documents
UPC Listing
Model "YWEE510S0FB" UPC: 883049391960
Model "YWEE510S0FS" UPC: 883049391977
Model "YWEE510S0FV" UPC: 883049474250
Model "YWEE510S0FW" UPC: 883049391953
Model "YWEE510S0FB"
UPC: 883049391960
Model "YWEE510S0FS"
UPC: 883049391977
Model "YWEE510S0FV"
UPC: 883049474250
Model "YWEE510S0FW"
UPC: 883049391953
