Model: KRSF536RPS
28.7 Cu. Ft. Side-by-Side Refrigerator with Exterior Ice and Water Dispenser in PrintShield™ Finish
Send Email
Print
Product Description

Make room for every grocery run and farmers market haul with the largest side-by-side refrigerator capacity from KitchenAid brand. Signature Platinum Interior with Panoramic LED Lighting showcases your ingredients across nine removable shelves. And an Exterior Ice and Water Dispenser with Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.

Color: Fingerprint Resistant Stainless Steel

Model: KRSF536RPS
28.7 Cu. Ft. Side-by-Side Refrigerator with Exterior Ice and Water Dispenser in PrintShield™ Finish
Color: Fingerprint Resistant Stainless Steel

Product Description

Make room for every grocery run and farmers market haul with the largest side-by-side refrigerator capacity from KitchenAid brand. Signature Platinum Interior with Panoramic LED Lighting showcases your ingredients across nine removable shelves. And an Exterior Ice and Water Dispenser with Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.

Features

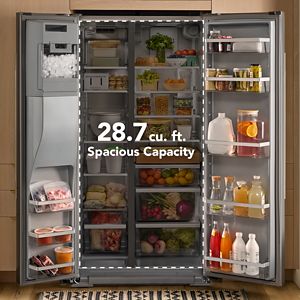

Spacious Capacity at 28.7 cu. ft.
the largest capacity side-by-side refrigerator from KitchenAid brand* makes room for every grocery run and farmers market haul with 28.7 cu. ft. of capacity and specialized spaces for your special ingredients.

*Applies to models KRSF336R and KRSF536R.more
Panoramic LED Lighting
illuminates the back of the refrigerator to keep ingredients in sight and easy to find. The rear lighting tower, combined with additional LED light strips throughout the refrigerator and freezer, brighten up the view throughout.more
Customizable Spaces for Items Big and Small
featuring eight removable glass shelves and eight adjustable door bins keep all of your ingredients easily accessible. Rearrange to fit tall wine bottles, stash small items within reach and organize frozen favorites.more
In-Door-Ice® System with Removable Bin
maximizes ice storage while maximizing space on freezer shelves by moving the ice bin to the door. The bin holds up to 4.3 lbs of ice, is clear so you can quickly see ice levels and can be removed to easily fill pitchers or coolers.more
Signature Platinum Interior
wows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints and ultra-bright LED lighting pop against the stunning silver-colored finish.more
Preserva® Cooling System
helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.more
Exterior Ice and Water Dispenser with Measured Fill

conveniently dispenses filtered ice and water without opening the door. Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.more
Humidity-Controlled Crisper
provides dedicated space for produce with the ability to adjust humidity levels to match. Choose high humidity to help vegetables stay crisp, low humidity to help fruit stay fresh or a setting in between to balance the needs of both.more
Wood-Look Sliding Storage Tray
keeps serving platters and ingredients easily accessible. The tray removes fully for easy cleaning.more
PrintShield™ Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.more
Max Cool
helps quickly chill recently loaded groceries by setting the refrigerator compartment to the lowest temperature level for up to 6 hours.more
Max Freeze
helps frozen items quickly reach optimal storage temperatures by setting the freezer compartment to the lowest temperature level for up to 48 hours.more
FreshFlow™ Air Filter
deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.more
Touchscreen Controls
on the front of the refrigerator make it easy to choose temperature settings, control the icemaker and check the status of the water filter, all without opening the door.more
Max Freeze
helps frozen items quickly reach optimal storage temperatures by setting the freezer compartment to the lowest temperature level for up to 48 hours.more
Sabbath Mode
meets kosher requirements for use on the Jewish Sabbath and other holidays. Turning on Sabbath Mode disables the refrigerator's automatic lights and alarm tones while maintaining cold temperatures for freshness.more
Specifications
Filter Details
Air Filter Indicator/Reset No
Produce Preserver No
Water Filter Location Interior
Water Filter Indicator/Reset Yes
Water Filter Part Number EDRARXD1
Air Filter Indicator/Reset
No
Produce Preserver
No
Water Filter Location
Interior
Water Filter Indicator/Reset
Yes
Water Filter Part Number
EDRARXD1
Dimensions
Cabinet Width 90.17 cm, 35.5 in
Cutout Depth 90.49 cm, 35.625 in
Cutout Width 92.71 cm, 36.5 in
Cutout Height 178.44 cm, 70.25 in
Depth 85.41 cm, 33.625 in
Depth Closed Excluding Handles 85.41 cm, 33.625 in
Depth Closed Including Handles 92.08 cm, 36.25 in
Depth Excluding Doors 73.66 cm, 29 in
Depth With Door Open 90 Degree 129.54 cm, 51 in
Freezer Capacity Volume 314.70 l, 11.12 cu. ft.
Gross Weight 139.62 kg, 307.8 lbs
Height 175.90 cm, 69.25 in
Height To Top Of Cabinet 175.26 cm, 69 in
Height To Top Of Door Hinge 175.73 cm, 69.187 in
Net Weight 135.08 kg, 297.8 lbs
Refrigerator Capacity Volume 497.51 l, 17.58 cu. ft.
Total Refrigerator Capacity Volume 812.21 l, 28.7 cu. ft.
Width 90.17 cm, 35.5 in
Height To Top Of Door Trim 175.90 cm, 69.25 in
Maximum Height 175.26 cm, 69 in
Minimum Height 174.94 cm, 68.875 in
Cabinet Width
90.17 cm, 35.5 in
Cutout Depth
90.49 cm, 35.625 in
Cutout Width
92.71 cm, 36.5 in
Cutout Height
178.44 cm, 70.25 in
Depth
85.41 cm, 33.625 in
Depth Closed Excluding Handles
85.41 cm, 33.625 in
Depth Closed Including Handles
92.08 cm, 36.25 in
Depth Excluding Doors
73.66 cm, 29 in
Depth With Door Open 90 Degree
129.54 cm, 51 in
Freezer Capacity Volume
314.70 l, 11.12 cu. ft.
Gross Weight
139.62 kg, 307.8 lbs
Height
175.90 cm, 69.25 in
Height To Top Of Cabinet
175.26 cm, 69 in
Height To Top Of Door Hinge
175.73 cm, 69.187 in
Net Weight
135.08 kg, 297.8 lbs
Refrigerator Capacity Volume
497.51 l, 17.58 cu. ft.
Total Refrigerator Capacity Volume
812.21 l, 28.7 cu. ft.
Width
90.17 cm, 35.5 in
Height To Top Of Door Trim
175.90 cm, 69.25 in
Maximum Height
175.26 cm, 69 in
Minimum Height
174.94 cm, 68.875 in
Certifications
ADA Compliant ADA Height and Side Reach Compliant
CEE Tier Rating Not Rated
Star K Certified Star K Certified
UL Yes
ADA Compliant
ADA Height and Side Reach Compliant
CEE Tier Rating
Not Rated
Star K Certified
Star K Certified
UL
Yes
Smart Compatibility
Connectivity No
Smart Appliance No
Works With No
Connectivity
No
Smart Appliance
No
Works With
No
Exterior Details
Base Grille Color Grey
Cabinet Color Stainless Steel Fingerprint Resistant
Cabinet Finish Smooth
Counter Depth No
Door Color Stainless Steel with PrintShield Finish
Door Opening Direction N/A
Door Finish PrintShield Finish
Door Style Contour
Handle Color Stainless Steel
Handle Material Metal
Hidden Hinge Yes
Handle Type Reach-Through Handle
Reversible Door No
Base Grille Color
Grey
Cabinet Color
Stainless Steel Fingerprint Resistant
Cabinet Finish
Smooth
Counter Depth
No
Door Color
Stainless Steel with PrintShield Finish
Door Opening Direction
N/A
Door Finish
PrintShield Finish
Door Style
Contour
Handle Color
Stainless Steel
Handle Material
Metal
Hidden Hinge
Yes
Handle Type
Reach-Through Handle
Reversible Door
No
Controls
Automatic Defrost Yes
Control Location Exterior Dispenser
Control Lockout Yes
Cooling Type Single Evaporator
Door Ajar/Open Alarm Yes
LCD Touch Screen No
Max Cool/Fast Cool Max Freeze/Max Cool
Sabbath Mode Yes
Temperature Range -5/+5 FC 33/45 RC
Refrigerator Max Cool Yes
Automatic Defrost
Yes
Control Location
Exterior Dispenser
Control Lockout
Yes
Cooling Type
Single Evaporator
Door Ajar/Open Alarm
Yes
LCD Touch Screen
No
Max Cool/Fast Cool
Max Freeze/Max Cool
Sabbath Mode
Yes
Temperature Range
-5/+5 FC 33/45 RC
Refrigerator Max Cool
Yes
Dimensions
Gross Weight 139.62 kg, 307.800 lbs
Gross Weight
139.62 kg, 307.800 lbs
Refrigerator Details
Conventional Shelves 1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Deli Drawer Yes
Humidity-Controlled Crispers 1 Full-Width
Liner Finish Platinum
Non Climate Control Drawers No
Number of Doors 2
Number of Interior Shelves 4
Pantry Drawer No
Refrigerator Lighting LED
Refrigerator Door Bins 5 Adjustable Full-Width Gallon Bins
Spill-Proof Glass Shelves No
Supplementary Containers Utility Compartment
Temperature-Controlled Drawers No
Conventional Shelves
1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Deli Drawer
Yes
Humidity-Controlled Crispers
1 Full-Width
Liner Finish
Platinum
Non Climate Control Drawers
No
Number of Doors
2
Number of Interior Shelves
4
Pantry Drawer
No
Refrigerator Lighting
LED
Refrigerator Door Bins
5 Adjustable Full-Width Gallon Bins
Spill-Proof Glass Shelves
No
Supplementary Containers
Utility Compartment
Temperature-Controlled Drawers
No
Details
Advance Foam Insulation N/A
Installation Configuration Freestanding
Levelers 2 Black
Refrigeration Configuration Refrigerator
Refrigerator Type Side-by-Side
Wheels 4-Natural
Door Style Configuration Side-by-Side
Advance Foam Insulation
N/A
Installation Configuration
Freestanding
Levelers
2 Black
Refrigeration Configuration
Refrigerator
Refrigerator Type
Side-by-Side
Wheels
4-Natural
Door Style Configuration
Side-by-Side
Dispenser Details
Dispenser Type Exterior Ice and Water
Dispenser Options Control/Child Lock , Filtered Ice , Filtered Water , Measured/Metered Fill , Night Light
Dispenser Type
Exterior Ice and Water
Dispenser Options
Control/Child Lock , Filtered Ice , Filtered Water , Measured/Metered Fill , Night Light
Icemaker Details
Icemaker Factory Installed
Icemaker Location Freezer Door
Types of Ice Crushed/Cubed
Icemaker
Factory Installed
Icemaker Location
Freezer Door
Types of Ice
Crushed/Cubed
Freezer Details
Freezer Door Bins 3 Adjustable Full-Width
Freezer Door Type Swing
Freezer Drawer/Basket 1 Full Width Lower Plastic
Freezer Lighting LED
Freezer Number of Shelves 4
Freezer Shelves 1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Freezer Door Bins
3 Adjustable Full-Width
Freezer Door Type
Swing
Freezer Drawer/Basket
1 Full Width Lower Plastic
Freezer Lighting
LED
Freezer Number of Shelves
4
Freezer Shelves
1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Electrical Requirements
Amps 15
Amps
15
Documents
UPC Listing
Model "KRSF536RPS" UPC: 883049684116
Model "KRSF536RPS"
UPC: 883049684116
