Model: KRSC536RBE
20.8 Cu. Ft. Counter-Depth Side-by-Side Refrigerator with Exterior Ice and Water Dispenser in Black Ore
Send Email
Print
Product Description

Make room for every grocery run and farmers market haul with this large capacity counter-depth side-by-side refrigerator from KitchenAid brand. Counter-depth design fits with surrounding cabinetry to create a built-in appearance. Panoramic LED Lighting illuminates every angle to keep ingredients in sight and easy to find. And an Exterior Ice and Water Dispenser with Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.

Color: Black Ore

Model: KRSC536RBE
20.8 Cu. Ft. Counter-Depth Side-by-Side Refrigerator with Exterior Ice and Water Dispenser in Black Ore
Color: Black Ore

Product Description

Make room for every grocery run and farmers market haul with this large capacity counter-depth side-by-side refrigerator from KitchenAid brand. Counter-depth design fits with surrounding cabinetry to create a built-in appearance. Panoramic LED Lighting illuminates every angle to keep ingredients in sight and easy to find. And an Exterior Ice and Water Dispenser with Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.

Additional Hardware Kit
Features

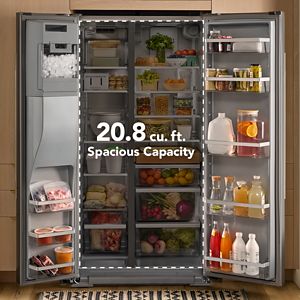

Spacious Counter-Depth Capacity at 20.8 cu. ft.
this large capacity counter-depth side-by-side refrigerator makes room for every grocery run and farmers market haul with 20.8 cu. ft. of capacity and specialized spaces for your special ingredients.more
Panoramic LED Lighting
illuminates the back of the refrigerator to keep ingredients in sight and easy to find. The rear lighting tower, combined with additional LED light strips throughout the refrigerator and freezer, brighten up the view throughout.more
Customizable Spaces for Items Big and Small
featuring nine removable glass shelves and eight adjustable door bins keep all of your ingredients easily accessible. Rearrange to fit tall wine bottles, stash small items within reach and organize frozen favorites.more
In-Door-Ice® System with Removable Bin
maximizes ice storage while maximizing space on freezer shelves by moving the ice bin to the door. The bin holds up to 4.3 lbs of ice, is clear so you can quickly see ice levels and can be removed to easily fill pitchers or coolers.more
Signature Platinum Interior
wows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints and ultra-bright LED lighting pop against the stunning silver-colored finish.more
ExtendFresh™ Temperature Management System
helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.more
Exterior Ice and Water Dispenser with Measured Fill

conveniently dispenses filtered ice and water without opening the door. Measured Fill allows you to select and dispense the exact amount you need in ounces, cups or liters.more
Humidity-Controlled Crisper
provides dedicated space for produce with the ability to adjust humidity levels to match. Choose high humidity to help vegetables stay crisp, low humidity to help fruit stay fresh or a setting in between to balance the needs of both.more
Wood-Look Sliding Storage Tray
keeps serving platters and ingredients easily accessible. The tray removes fully for easy cleaning.more
Max Cool
helps quickly chill recently loaded groceries by setting the refrigerator compartment to the lowest temperature level for up to 6 hours.more
Max Freeze
helps frozen items quickly reach optimal storage temperatures by setting the freezer compartment to the lowest temperature level for up to 48 hours.more
FreshFlow™ Air Filter
deodorizes 15x better than baking soda. The replaceable carbon-based filter neutralizes common food odors for up to 6 months.more
Touchscreen Controls
on the front of the refrigerator make it easy to choose temperature settings, control the icemaker and check the status of the water filter, all without opening the door.more
Counter-Depth Design
fits with surrounding cabinetry, creating a built-in appearance while freeing up more space in the kitchen.more
Energy Star® Certified
to exceed government standards for energy efficiency, supporting sustainability and helping to save money on utility bills.more
Sabbath Mode
meets kosher requirements for use on the Jewish Sabbath and other holidays. Turning on Sabbath Mode disables the refrigerator's automatic lights and alarm tones while maintaining cold temperatures for freshness.more
Designed to be Personalized
with a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching handles. Personalize your hardware with optional handle accessory kits in Brass, Bronze, Black Ore and Stainless Steel.more
Specifications
Filter Details
Air Filter Indicator/Reset Yes
Air Filter Part Number W10311524
Fresh Flow Air Filter Included Yes
Produce Preserver No
Water Filter Location Interior
Water Filter Indicator/Reset Yes
Water Filter Part Number EDRARXD1
Air Filter Indicator/Reset
Yes
Air Filter Part Number
W10311524
Fresh Flow Air Filter Included
Yes
Produce Preserver
No
Water Filter Location
Interior
Water Filter Indicator/Reset
Yes
Water Filter Part Number
EDRARXD1
Dimensions
Cabinet Width 90.17 cm, 35.5 in
Cutout Depth 77.15 cm, 30.375 in
Cutout Width 92.71 cm, 36.5 in
Cutout Height 178.44 cm, 70.25 in
Depth 72.07 cm, 28.375 in
Depth Closed Excluding Handles 72.07 cm, 28.375 in
Depth Closed Including Handles 79.06 cm, 31.125 in
Depth Excluding Doors 60.64 cm, 23.875 in
Depth With Door Open 90 Degree 116.20 cm, 45.75 in
Freezer Capacity Volume 203.48 l, 7.19 cu. ft.
Gross Weight 122.74 kg, 270.6 lbs
Height 175.90 cm, 69.25 in
Height To Top Of Cabinet 175.26 cm, 69 in
Height To Top Of Door Hinge 175.73 cm, 69.187 in
Net Weight 118.21 kg, 260.6 lbs
Refrigerator Capacity Volume 386.58 l, 13.66 cu. ft.
Total Refrigerator Capacity Volume 590.06 l, 20.85 cu. ft.
Width 90.17 cm, 35.5 in
Height To Top Of Door Trim 175.90 cm, 69.25 in
Maximum Height 175.26 cm, 69 in
Minimum Height 174.94 cm, 68.875 in
Capacity 590.06 l, 20.85 cu. ft.
Cabinet Width
90.17 cm, 35.5 in
Cutout Depth
77.15 cm, 30.375 in
Cutout Width
92.71 cm, 36.5 in
Cutout Height
178.44 cm, 70.25 in
Depth
72.07 cm, 28.375 in
Depth Closed Excluding Handles
72.07 cm, 28.375 in
Depth Closed Including Handles
79.06 cm, 31.125 in
Depth Excluding Doors
60.64 cm, 23.875 in
Depth With Door Open 90 Degree
116.20 cm, 45.75 in
Freezer Capacity Volume
203.48 l, 7.19 cu. ft.
Gross Weight
122.74 kg, 270.6 lbs
Height
175.90 cm, 69.25 in
Height To Top Of Cabinet
175.26 cm, 69 in
Height To Top Of Door Hinge
175.73 cm, 69.187 in
Net Weight
118.21 kg, 260.6 lbs
Refrigerator Capacity Volume
386.58 l, 13.66 cu. ft.
Total Refrigerator Capacity Volume
590.06 l, 20.85 cu. ft.
Width
90.17 cm, 35.5 in
Height To Top Of Door Trim
175.90 cm, 69.25 in
Maximum Height
175.26 cm, 69 in
Minimum Height
174.94 cm, 68.875 in
Capacity
590.06 l, 20.85 cu. ft.
Certifications
ADA Compliant Yes
CEE Tier Rating Not Rated
Star K Certified Star K Certified
UL Yes
Prop 65 Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADA Compliant
Yes
CEE Tier Rating
Not Rated
Star K Certified
Star K Certified
UL
Yes
Prop 65
Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Smart Compatibility
Connectivity No
Smart Appliance No
Works With No
Connectivity
No
Smart Appliance
No
Works With
No
Exterior Details
Base Grille Color Black
Cabinet Color Black
Cabinet Finish Smooth
Counter Depth Yes
Door Color Black Ore
Door Opening Direction N/A
Door Style Contour
Handle Color Black Ore
Handle Material Metal
Hidden Hinge Yes
Handle Type Reach-Through Handle
Reversible Door No
Base Grille Color
Black
Cabinet Color
Black
Cabinet Finish
Smooth
Counter Depth
Yes
Door Color
Black Ore
Door Opening Direction
N/A
Door Style
Contour
Handle Color
Black Ore
Handle Material
Metal
Hidden Hinge
Yes
Handle Type
Reach-Through Handle
Reversible Door
No
Controls
Automatic Defrost Yes
Control Location Exterior Dispenser
Control Lockout Yes
Cooling Type Single Evaporator
Door Ajar/Open Alarm Yes
LCD Touch Screen No
Max Cool/Fast Cool Yes
Sabbath Mode Yes
Temperature Range -5/+5 FC 33/45 RC
Automatic Defrost
Yes
Control Location
Exterior Dispenser
Control Lockout
Yes
Cooling Type
Single Evaporator
Door Ajar/Open Alarm
Yes
LCD Touch Screen
No
Max Cool/Fast Cool
Yes
Sabbath Mode
Yes
Temperature Range
-5/+5 FC 33/45 RC
Details
Advance Foam Insulation N/A
Garage Ready No
Ice Capacity Storage 1.95 kg, 4.3 lbs
Installation Configuration Freestanding
Levelers 2 Black
Refrigeration Configuration Refrigerator
Refrigerator Type Side-by-Side
Wheels 4-Natural
Door Style Configuration Side-by-Side
Advance Foam Insulation
N/A
Garage Ready
No
Ice Capacity Storage
1.95 kg, 4.3 lbs
Installation Configuration
Freestanding
Levelers
2 Black
Refrigeration Configuration
Refrigerator
Refrigerator Type
Side-by-Side
Wheels
4-Natural
Door Style Configuration
Side-by-Side
Refrigerator Details
Conventional Shelves 1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Deli Drawer 1 Full-Width
Humidity-Controlled Crispers 1 Full-Width
Liner Finish Platinum
Non Climate Control Drawers 1 Full-Width
Number of Doors 2
Number of Interior Shelves 4
Pantry Drawer No
Refrigerator Lighting LED
Refrigerator Door Bins 2 Fixed Full-Width Gallon , 3 Adjustable Two-Liter
Spill-Proof Glass Shelves No
Supplementary Containers N/A
Temperature-Controlled Drawers No
Conventional Shelves
1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Deli Drawer
1 Full-Width
Humidity-Controlled Crispers
1 Full-Width
Liner Finish
Platinum
Non Climate Control Drawers
1 Full-Width
Number of Doors
2
Number of Interior Shelves
4
Pantry Drawer
No
Refrigerator Lighting
LED
Refrigerator Door Bins
2 Fixed Full-Width Gallon , 3 Adjustable Two-Liter
Spill-Proof Glass Shelves
No
Supplementary Containers
N/A
Temperature-Controlled Drawers
No
Dispenser Details
Dispenser Type Exterior Ice and Water
Dispenser Options Control/Child Lock , Filtered Water , Measured/Metered Fill , Night Light
Dispenser Pad Color Grey
Dispenser Type
Exterior Ice and Water
Dispenser Options
Control/Child Lock , Filtered Water , Measured/Metered Fill , Night Light
Dispenser Pad Color
Grey
Icemaker Details
Icemaker Factory Installed
Icemaker Location Freezer Door
Types of Ice Crushed/Cubed
Icemaker
Factory Installed
Icemaker Location
Freezer Door
Types of Ice
Crushed/Cubed
Freezer Details
Defrost Type Automatic Defrost
Freezer Door Bins 3 Fixed Full-Width
Freezer Door Type Swing
Freezer Drawer/Basket 1 Full Width Lower Plastic
Freezer Lighting LED
Freezer Number of Shelves 4
Freezer Shelves 1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Freezer Fast Cool Yes
Defrost Type
Automatic Defrost
Freezer Door Bins
3 Fixed Full-Width
Freezer Door Type
Swing
Freezer Drawer/Basket
1 Full Width Lower Plastic
Freezer Lighting
LED
Freezer Number of Shelves
4
Freezer Shelves
1 Fixed Full-Width Glass , 3 Adjustable Full-Width Glass
Freezer Fast Cool
Yes
Electrical Requirements
Amps 15
Hz 60
Volts 115
Amps
15
Hz
60
Volts
115
Documents
UPC Listing
Model "KRSC536RBE" UPC: 8.8305E+11
Model "KRSC536RJP" UPC: 8.8305E+11
Model "KRSC536RPS" UPC: 883049683782
Model "KRSC536RBE"
UPC: 8.8305E+11
Model "KRSC536RJP"
UPC: 8.8305E+11
Model "KRSC536RPS"
UPC: 883049683782
