Model: WTW5025SW
5.2 Cu. Ft. IEC Top Load Agitator Washer with Built-In Faucet
Send Email
Print

Product Description

Prewash clothes right inside this top load washer using a built-in washing machine faucet to help remove loose soils or select the washing machine Presoak Option to soak and wash in one cycle. Once you choose a cycle, the 360 Wash Agitator works to help provide a thorough clean. Plus, easily check on your laundry with a soft-close glass lid.

White
Color: White

Model: WTW5025SW
5.2 Cu. Ft. IEC Top Load Agitator Washer with Built-In Faucet
Color: White

Product Description

Prewash clothes right inside this top load washer using a built-in washing machine faucet to help remove loose soils or select the washing machine Presoak Option to soak and wash in one cycle. Once you choose a cycle, the 360 Wash Agitator works to help provide a thorough clean. Plus, easily check on your laundry with a soft-close glass lid.

Features

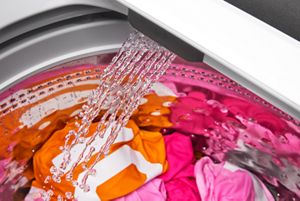

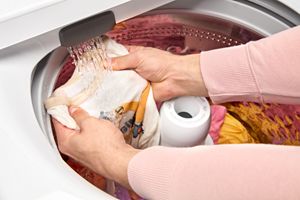

Built-In Water Faucet
Easily prewash clothes and other items right in the washer with a conveniently located faucet that gives you easy access to an instant water stream to remove loose soils.more

Built-In Water Faucet

Easily prewash clothes and other items right in the washer with a conveniently located faucet that gives you easy access to an instant water stream to remove loose soils.

x
Presoak Option
Save a step by soaking and washing in one cycle. The Presoak Option starts washing your laundry after a 30 minute presoak.more

Presoak Option

Save a step by soaking and washing in one cycle. The Presoak Option starts washing your laundry after a 30 minute presoak.

x
Quick Wash Cycle
Your small, lightly soiled loads will be clean in as little as 30 minutes with the Quick Wash cycle.*

*Based on a 3-lb loadmore

Quick Wash Cycle

Your small, lightly soiled loads will be clean in as little as 30 minutes with the Quick Wash cycle.*

*Based on a 3-lb load

x
Deep Water Wash Option
The Deep Water Wash Option fills the tub with more water to help soak and break down loose soils when you need.more

Deep Water Wash Option

The Deep Water Wash Option fills the tub with more water to help soak and break down loose soils when you need.

x
Smooth Spiral Stainless Steel Wash Basket
Help protect fabrics with this stainless steel wash basket that gently guides clothes during the wash.more

Smooth Spiral Stainless Steel Wash Basket

Help protect fabrics with this stainless steel wash basket that gently guides clothes during the wash.

x
Extra Rinse Option
Help ensure dirty loads get the care they need with an extra rinse to wash away any lingering soils or detergent.more

Extra Rinse Option

Help ensure dirty loads get the care they need with an extra rinse to wash away any lingering soils or detergent.

x
5.2 cu. ft IEC. Capacity
Get the extra space you need to wash bulky items with this 5.2 cu. ft IEC. Capacity washer.more

5.2 cu. ft IEC. Capacity

Get the extra space you need to wash bulky items with this 5.2 cu. ft IEC. Capacity washer.

x
360 Wash Agitator
Multiple wash motions gently move clothes up, down and side to side throughout the cycle, helping to loosen soils and provide a thorough clean.more

360 Wash Agitator

Multiple wash motions gently move clothes up, down and side to side throughout the cycle, helping to loosen soils and provide a thorough clean.

x

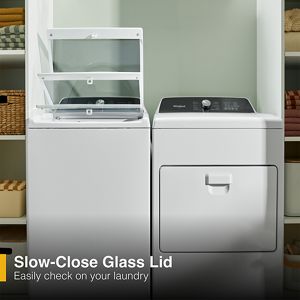

Slow-Close Glass Lid
Easily check on your laundry with a soft-close, glass lid.more

Slow-Close Glass Lid

Easily check on your laundry with a soft-close, glass lid.

x
Lid Lock
Unlock the lid anytime by pressing the start/pause button. Note that the lid does not lock until load sensing phase begins, at which point the lid lock icon on the console is illuminated.more

Lid Lock

Unlock the lid anytime by pressing the start/pause button. Note that the lid does not lock until load sensing phase begins, at which point the lid lock icon on the console is illuminated.

x
Clean Washer with affresh® cycle
Run the affresh® cycle every 30 washes with an affresh® washing machine cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer.more

Clean Washer with affresh® cycle

Run the affresh® cycle every 30 washes with an affresh® washing machine cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer.

x
-
-more

-

-

x
Specifications
Controls
Automatic Temperature Controls Yes
Control Type Knob and Button
Control Location Rear Console
Electronic Display Type Cycle Indicator Lights
End of Cycle Signal No
Feedback-Status Indicators Done , Sensing , Soak , Wash
LCD Touch Screen No
Automatic Temperature Controls
Yes
Control Type
Knob and Button
Control Location
Rear Console
Electronic Display Type
Cycle Indicator Lights
End of Cycle Signal
No
Feedback-Status Indicators
Done , Sensing , Soak , Wash
LCD Touch Screen
No
Modifiers
Delay Start No
Number of Rinse Options 3
Number of Soil Levels 1
Number of Temperatures 5
Number of Wash/Rinse Temperatures 5
Number of Washer Options 5
Number of Water Levels 2
Number of Spin Speeds 1
Pre Soak 30 minutes
Rinse Temperature Cold
Temperature Selections Cold , Cool , Hot , Tap Cold , Warm
Water Levels Auto , Deep water
Delay Start
No
Number of Rinse Options
3
Number of Soil Levels
1
Number of Temperatures
5
Number of Wash/Rinse Temperatures
5
Number of Washer Options
5
Number of Water Levels
2
Number of Spin Speeds
1
Pre Soak
30 minutes
Rinse Temperature
Cold
Temperature Selections
Cold , Cool , Hot , Tap Cold , Warm
Water Levels
Auto , Deep water
Dimensions
Capacity (DOE) US 127.35 l, 4.5 cu. ft.
Capacity IEC Canada 147.16 l, 5.2 cu. ft.
Depth 68.58 cm, 27 in
Gross Weight 63.50 kg, 140 lbs
Height 105.41 cm, 41-1/2 in
Height with Lid Open 141.60 cm, 55-3/4 in
Net Weight 58.51 kg, 129 lbs
Washer Door Opening Height (FL) Depth (TL) 47.96 cm, 18-22/25 in
Width 70.48 cm, 27-3/4 in
Capacity 127.35 l, 4.5 cu. ft.
Maximum Height 107.32 cm, 42-1/4 in
Minimum Height 105.41 cm, 41-1/2 in
Capacity (DOE) US
127.35 l, 4.5 cu. ft.
Capacity IEC Canada
147.16 l, 5.2 cu. ft.
Depth
68.58 cm, 27 in
Gross Weight
63.50 kg, 140 lbs
Height
105.41 cm, 41-1/2 in
Height with Lid Open
141.60 cm, 55-3/4 in
Net Weight
58.51 kg, 129 lbs
Washer Door Opening Height (FL) Depth (TL)
47.96 cm, 18-22/25 in
Width
70.48 cm, 27-3/4 in
Capacity
127.35 l, 4.5 cu. ft.
Maximum Height
107.32 cm, 42-1/4 in
Minimum Height
105.41 cm, 41-1/2 in
Certifications
ADA Compliant No
CEE Tier Rating Not Rated
Prop 65 Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
UL Yes
ADA Compliant
No
CEE Tier Rating
Not Rated
Prop 65
Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
UL
Yes
Smart Compatibility
Connectivity No
Smart Appliance No
Works With No
Connectivity
No
Smart Appliance
No
Works With
No
Cycles
Number of Wash Cycles 12
Washer Cycle Selections Active Wear , Bulky Items , Clean Washer with affresh , Colors , Delicates , Drain & Spin , Heavy Duty , Jeans , Normal , Quick Wash , Towels , Whites
Programmable Cycle No
Number of Wash Cycles
12
Washer Cycle Selections
Active Wear , Bulky Items , Clean Washer with affresh , Colors , Delicates , Drain & Spin , Heavy Duty , Jeans , Normal , Quick Wash , Towels , Whites
Programmable Cycle
No
Installation Considerations
Hoses Included Drain Hose
Hoses Included
Drain Hose
Exterior Details
Adjustable Feet Yes
Lid/Door Swing N/A
Slow Close Lid Yes
Window Yes
Adjustable Feet
Yes
Lid/Door Swing
N/A
Slow Close Lid
Yes
Window
Yes
Interior Details
Advanced Vibration Control No
Automatic Load Size Sensing Technology Yes
Automated Dispenser No
Dispense System Bleach , Fabric Softener Cap
Fan Type N/A
Motor Drive Type Belt
Out of Balance Sensing Yes
Suspension System 4 Springs 4 Dampers , Liquid filled upper balance ring
Wash Action Agitator
Washer Drum Material Stainless Steel
Eco Monitor/Efficiency Monitor No
Dryer Interior Light No
Advanced Vibration Control
No
Automatic Load Size Sensing Technology
Yes
Automated Dispenser
No
Dispense System
Bleach , Fabric Softener Cap
Fan Type
N/A
Motor Drive Type
Belt
Out of Balance Sensing
Yes
Suspension System
4 Springs 4 Dampers , Liquid filled upper balance ring
Wash Action
Agitator
Washer Drum Material
Stainless Steel
Eco Monitor/Efficiency Monitor
No
Dryer Interior Light
No
Options
Washer Option Selections Deep Water Wash , Extra Rinse , Fabric Softener , Faucet , Presoak , Sales Demo Mode
Washer Option Selections
Deep Water Wash , Extra Rinse , Fabric Softener , Faucet , Presoak , Sales Demo Mode
Details
Fabric Brush No
Internal Heater No
Maytag Commercial Components No
Pedestal Options No
Recirculation(visible) No
Sound Package No
Stackable No
Water Faucet Yes
Lid/Door Finish Glass
LED Color White
Lid/Door Lock Yes
Motor Horsepower 1/3 HP
Fabric Brush
No
Internal Heater
No
Maytag Commercial Components
No
Pedestal Options
No
Recirculation(visible)
No
Sound Package
No
Stackable
No
Water Faucet
Yes
Lid/Door Finish
Glass
LED Color
White
Lid/Door Lock
Yes
Motor Horsepower
1/3 HP
Electrical Requirements
Power Cord Included Yes
Amps 15
Hz 60
Volts 120
Power Cord Included
Yes
Amps
15
Hz
60
Volts
120
Documents
UPC Listing
Model "WTW5025SW" UPC: 883049920252
Model "WTW5025SW"
UPC: 883049920252
