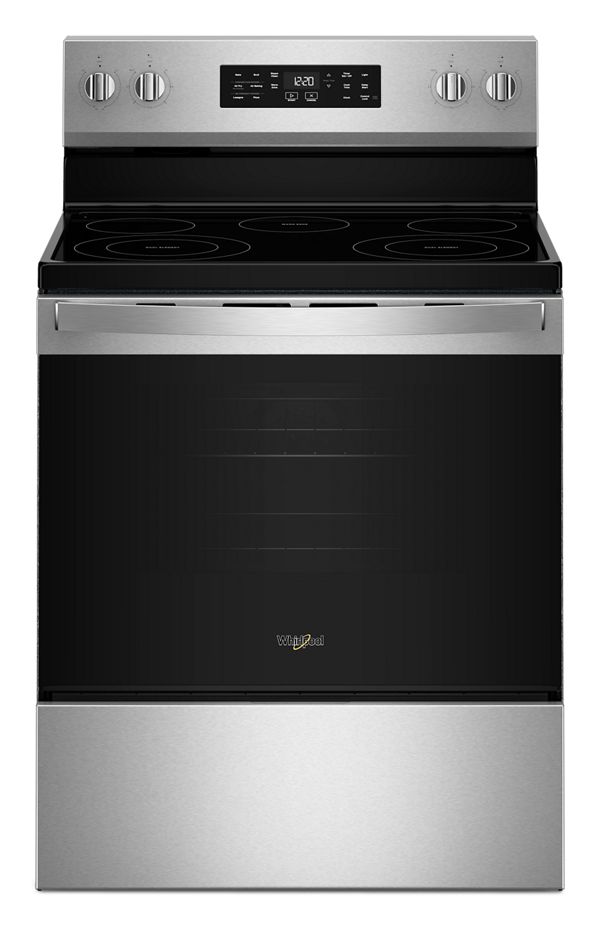

Model: YWFES4530SZ
30-inch Electric Range with Air Cooking Technology
Send Email
Print
Product Description

"Experience the difference* of Air Cooking Technology with Air Baking with this 30-inch electric range. Get crispy fast with No Preheat Air Fry or make more feel-good meals with a variety of cooking modes. Boil 40% faster with 2 FlexHeat™ Dual Radiant Elements** and prevent soils from building up by regularly using Steam Clean.
*Compared to thermal bake.
**When comparing the 9"" element to the standard 6"" element on the same unit."

Color: Fingerprint Resistant Stainless Steel

Model: YWFES4530SZ
30-inch Electric Range with Air Cooking Technology
Color: Fingerprint Resistant Stainless Steel

Product Description

"Experience the difference* of Air Cooking Technology with Air Baking with this 30-inch electric range. Get crispy fast with No Preheat Air Fry or make more feel-good meals with a variety of cooking modes. Boil 40% faster with 2 FlexHeat™ Dual Radiant Elements** and prevent soils from building up by regularly using Steam Clean.
*Compared to thermal bake.
**When comparing the 9"" element to the standard 6"" element on the same unit."

Features
Air Cooking Technology
Experience the difference with Air Cooking Technology, featuring more airflow with No Preheat Air Fry and Air Baking.
(Compared to Thermal bake.)more
Cooking Modes
Make more feel-good meals with a variety of cooking modes. Choose from modes that use Air Cooking Technology, like No Preheat Air Fry and Air Baking, or use traditional thermal cooking modes like Bake or Broil.more
No Preheat Air Fry
Save time* with No Preheat Air Fry. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt.
*Compared to YWFE550S0LZmore
2 FlexHeat™ Dual Radiant Elements
Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.more
Steam Clean
Use the Steam Clean cycle regularly to help prevent large soils from building up. To quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle, and wipe away.more
Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consistent heat throughout the oven. Get golden results on breads, pastries and more.more
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.more
Bake
Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.more
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.more
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.more
Cooktop Flexibility
Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.more
Large Capacity Oven
Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious, large-capacity 5.3 cu. ft. oven.more
Storage Drawer
Easily store kitchen items from baking sheets to cooking pans in the storage drawer to free up space elsewhere in your kitchen.more
Fingerprint Resistant Stainless Steel
Available in Fingerprint Resistant Stainless Steel that's easy to clean and resists fingerprints and smudges.more
ENERGY STAR® Certified
ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.more
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.more
Specifications
Certifications
ADA Compliant No
CUL Yes
Star K Certified Star K Certified
UL Yes
Prop 65 Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADA Compliant
No
CUL
Yes
Star K Certified
Star K Certified
UL
Yes
Prop 65
Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Oven Cavity Details
Number of Oven Racks 2
Convection Functions Air Baking , Bake , Broil , Keep Warm , No Preheat , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Warm Zone
Oven Rack Type 2 Standard
Broiler Location Top Center
Oven Cleaning Type Steam-Clean
Door Removable Yes
Number of Oven Lights 1
Convection Element Type Single-Fan
Oven Light Type Halogen
Interior Color Grey
Number of Rack Guides 5
Hidden Bake Element Hidden
Oven Cooking System Convection
Broiler Element Power 3400W
Bake Element Power 2400W
Automatic Convection Conversion Temperature Adjust No
Oven Light Switch Location Oven Control
Oven Rack Front Material Metal
Temperature Probe No
Temperature Sensor Yes
Number of Oven Racks
2
Convection Functions
Air Baking , Bake , Broil , Keep Warm , No Preheat , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Warm Zone
Oven Rack Type
2 Standard
Broiler Location
Top Center
Oven Cleaning Type
Steam-Clean
Door Removable
Yes
Number of Oven Lights
1
Convection Element Type
Single-Fan
Oven Light Type
Halogen
Interior Color
Grey
Number of Rack Guides
5
Hidden Bake Element
Hidden
Oven Cooking System
Convection
Broiler Element Power
3400W
Bake Element Power
2400W
Automatic Convection Conversion Temperature Adjust
No
Oven Light Switch Location
Oven Control
Oven Rack Front Material
Metal
Temperature Probe
No
Temperature Sensor
Yes
Details
Cooktop Configuration All Burners
Delay Clean No
Fuel Type Electric
Installation Configuration Freestanding
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Freestanding
Range Type Freestanding
Oven Selections Audible Signal , Bake , Broil , Clock , Control Lock , Convect Modes , Cook Time , Delay Start , Language Conversion , Light , No Preheat - Frozen , Sabbath Mode , Start/Cancel , Steam Clean , Temp/Time Selection , Timer Set/Off
Cooktop Configuration
All Burners
Delay Clean
No
Fuel Type
Electric
Installation Configuration
Freestanding
Oven Automatic Shut-Off
Yes
Oven Configuration
Single Oven
Power On Indicator Light
Yes
Power Outage Compatible
Yes
Range Configuration
Freestanding
Range Type
Freestanding
Oven Selections
Audible Signal , Bake , Broil , Clock , Control Lock , Convect Modes , Cook Time , Delay Start , Language Conversion , Light , No Preheat - Frozen , Sabbath Mode , Start/Cancel , Steam Clean , Temp/Time Selection , Timer Set/Off
Element/Burner Details
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Warming
Center Rear Element-Burner Power 100W
Cooktop Element Style Radiant
Left Front Element-Burner Power 3000W
Left Front Element-Burner Size 9in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Power 1200W
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Single
Number of Cooking Element-Burners 5
Right Front Element-Burner Power 3000W
Right Front Element-Burner Size 12in./9in.
Right Rear Element-Burner Size 6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Type Single
Center Rear Element-Burner Size
6in.
Center Rear Element-Burner Type
Warming
Center Rear Element-Burner Power
100W
Cooktop Element Style
Radiant
Left Front Element-Burner Power
3000W
Left Front Element-Burner Size
9in./6in.
Left Front Element-Burner Type
Dual
Left Rear Element-Burner Power
1200W
Left Rear Element-Burner Size
6in.
Left Rear Element-Burner Type
Single
Number of Cooking Element-Burners
5
Right Front Element-Burner Power
3000W
Right Front Element-Burner Size
12in./9in.
Right Rear Element-Burner Size
6in.
Right Front Element-Burner Type
Dual
Right Rear Element-Burner Power
1200W
Right Rear Element-Burner Type
Single
Exterior Details
Door Type Glass
Handle Material Metal
Handle Color Print Resist Stainless Steel
Handle Type Reach-Through Handle
Knob Color Print Resist Stainless Steel
Knob Type Plastic
Oven Control Knob Type N/A
Oven Control Location Backguard
Oven Control Type Tap Touch
Oven Window Size Extra Large
Door Lock No
Door Type
Glass
Handle Material
Metal
Handle Color
Print Resist Stainless Steel
Handle Type
Reach-Through Handle
Knob Color
Print Resist Stainless Steel
Knob Type
Plastic
Oven Control Knob Type
N/A
Oven Control Location
Backguard
Oven Control Type
Tap Touch
Oven Window Size
Extra Large
Door Lock
No
Controls
Display Color White
Display Color
White
Dimensions
Adjustable Height Yes
Cutout Depth 60.96 cm, 24 in
Cutout Height 91.44 cm, 36 in
Cutout Width 76.20 cm, 30 in
Depth 70.48 cm, 27.75 in
Depth Closed Excluding Handles 64.30 cm, 25.313 in
Depth Closed Including Handles 71.12 cm, 28 in
Depth Excluding Doors 62.23 cm, 24.5 in
Depth With Door Open 90 Degree 118.59 cm, 46.688 in
Gross Weight 0.00 kg, 0 lbs
Height 121.60 cm, 47.875 in
Net Weight 0.00 kg, 0 lbs
Oven Interior Height 46.04 cm, 18.125 in
Oven Interior Depth 46.99 cm, 18.5 in
Oven Interior Width 62.23 cm, 24.5 in
Width 75.88 cm, 29.875 in
Capacity 149.99 l, 5.3 cu. ft.
Common Size 76.20 cm, 30 in
Maximum Height 121.60 cm, 47.875 in
Adjustable Height
Yes
Cutout Depth
60.96 cm, 24 in
Cutout Height
91.44 cm, 36 in
Cutout Width
76.20 cm, 30 in
Depth
70.48 cm, 27.75 in
Depth Closed Excluding Handles
64.30 cm, 25.313 in
Depth Closed Including Handles
71.12 cm, 28 in
Depth Excluding Doors
62.23 cm, 24.5 in
Depth With Door Open 90 Degree
118.59 cm, 46.688 in
Gross Weight
0.00 kg, 0 lbs
Height
121.60 cm, 47.875 in
Net Weight
0.00 kg, 0 lbs
Oven Interior Height
46.04 cm, 18.125 in
Oven Interior Depth
46.99 cm, 18.5 in
Oven Interior Width
62.23 cm, 24.5 in
Width
75.88 cm, 29.875 in
Capacity
149.99 l, 5.3 cu. ft.
Common Size
76.20 cm, 30 in
Maximum Height
121.60 cm, 47.875 in
Smart Compatibility
Connectivity No
Smart Appliance No
Connectivity
No
Smart Appliance
No
Features
Range Features Air Fry , Fan Convection , FlexHeat™ Dual Element , Sabbath Mode/Star-K Certification , Whirlpool Handle
Range Features
Air Fry , Fan Convection , FlexHeat™ Dual Element , Sabbath Mode/Star-K Certification , Whirlpool Handle
Cooktop Details
Cooktop Control Location Backguard
Cooktop Control Knob Type Plastic
Cooktop Control Type Knobs
Cooktop Surface Material Glass
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Cooktop Control Location
Backguard
Cooktop Control Knob Type
Plastic
Cooktop Control Type
Knobs
Cooktop Surface Material
Glass
Griddle Included
No
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Electrical Requirements
Power Cord Included Yes
Amps 40
Hz 60
Volts 208
Watts 7900
Power Cord Included
Yes
Amps
40
Hz
60
Volts
208
Watts
7900
Documents
UPC Listing
Model "YWFES4530SB" UPC: 883049938585
Model "YWFES4530SW" UPC: 883049938592
Model "YWFES4530SZ" UPC: 883049941097
Model "YWFES4530SB"
UPC: 883049938585
Model "YWFES4530SW"
UPC: 883049938592
Model "YWFES4530SZ"
UPC: 883049941097
